AFS
Atmospheric plasma treatment
Gas-phase surface modification where corona is not enough — and on shapes corona cannot reach.
Published figures
Atmospheric plasma treatment
Corona works on a flat web passing over a roller. Plasma goes further: it modifies the surface chemically in the gas phase, which lets it replace wet-chemical primers entirely — and a plasma jet can reach geometry that a corona station never could.
AFS offer two routes: Aldyne for in-line surface modification of webs, and the PlasmaJet for cleaning, activating and welding three-dimensional components.
2 systems

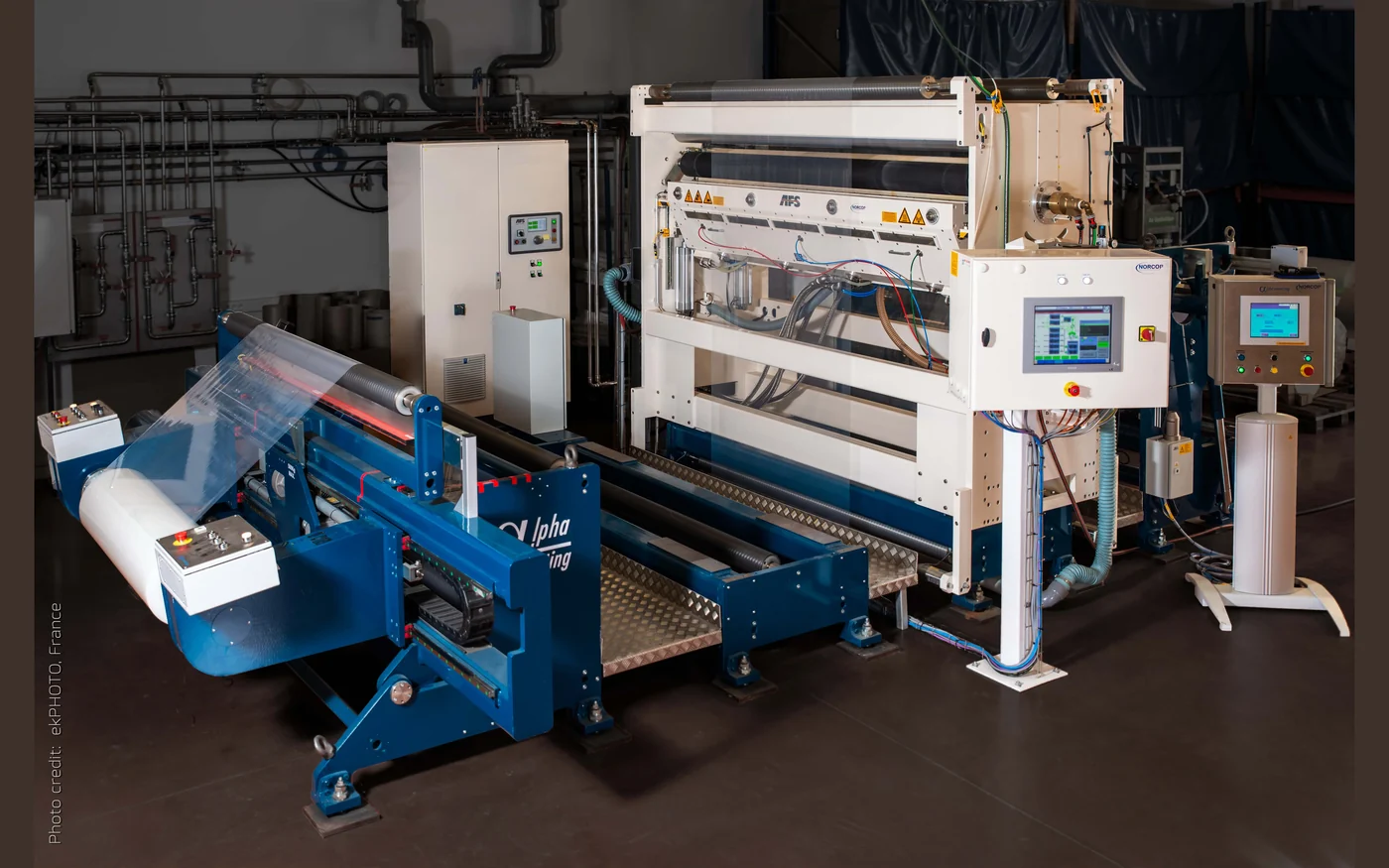

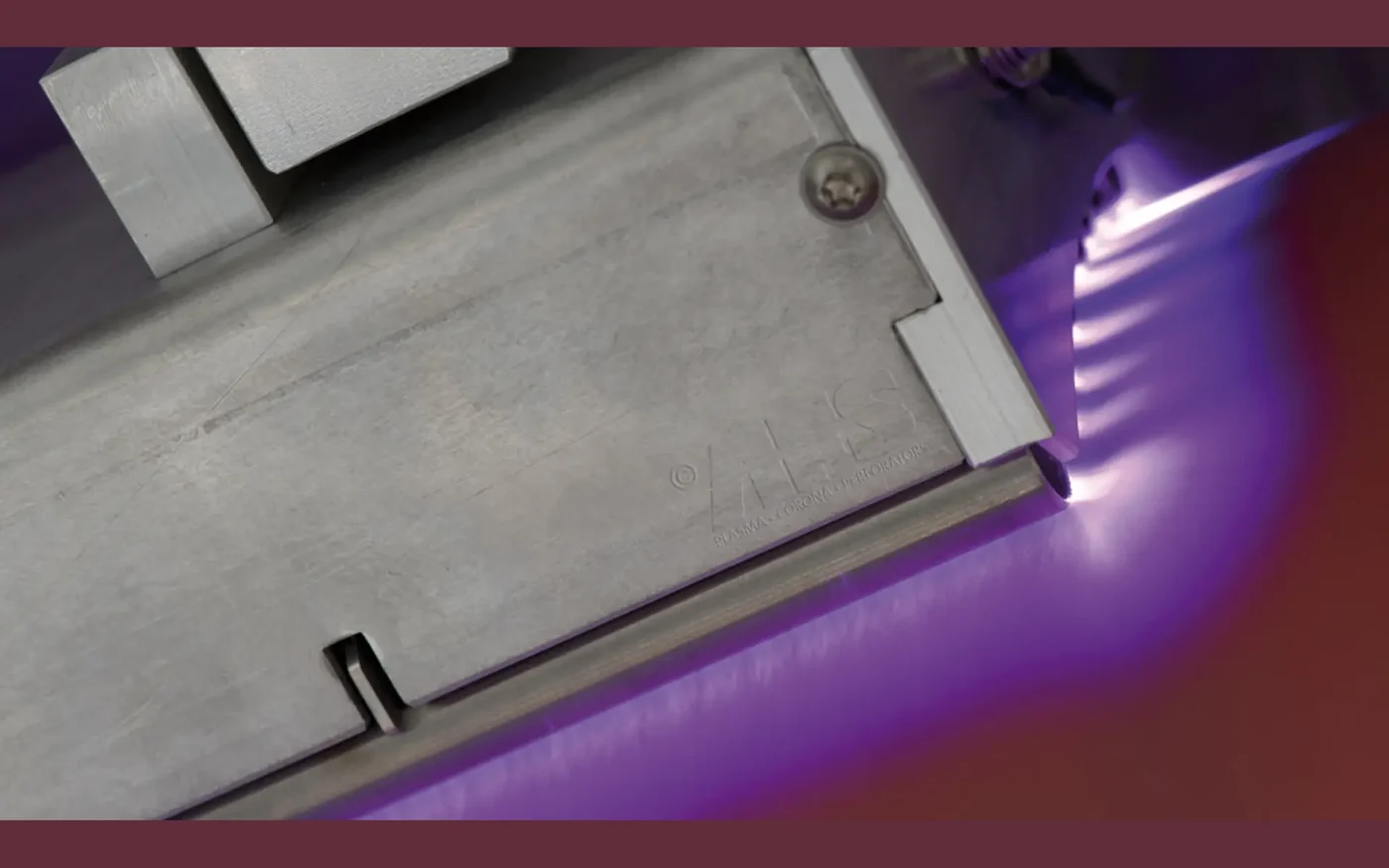

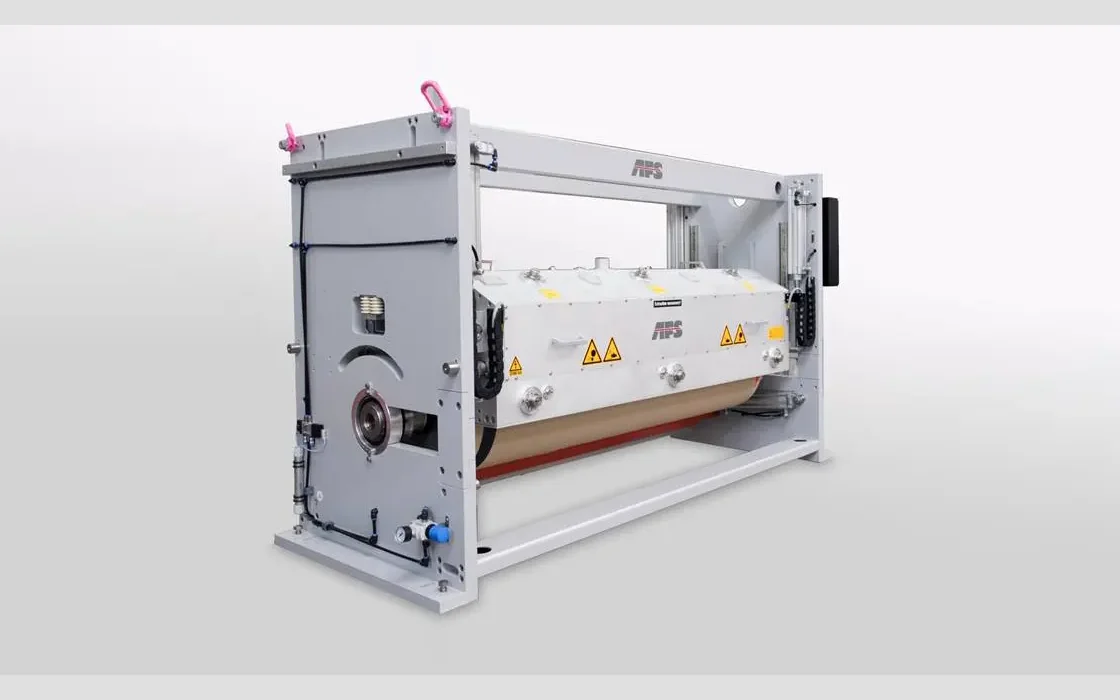

Aldyne plasma surface modification
Replace wet chemical primers with ALDYNE™ and achieve guaranteed adhesion on wide material webs at significantly lower costs and with less effort. This environmentally friendly technology creates non-destructive adhesion even on the most sensitive surfaces without altering the optical properties of the material. Make the switch and save time, money, and environmentally harmful waste.
Technical data
| Electrode types (alternativw) | Ceramic or metal |
|---|---|
| Carrier gas | Nitrogen |
| Number of process gases | max. 2 |
| Treatment roller | Diameter 400 mm, CERALTM-P Ceramic coating water-cooled |
| Process speed | max. 400 m / min (higher on request) |
PlasmaJet
The PlasmaJet® is your compact system for non-contact surface treatment for cleaning, activating, and modifying a wide variety of 3D materials. Thanks to its special plasma jet and flexible application options, even hard-to-reach geometries can be processed effortlessly. This allows you to achieve excellent treatment results universally and easily.
In detail
Where these are used
AFS in Pakistan — through K Group
K Group is the authorized agent for AFS in Pakistan. Surface treatment is specified on substrate, working width, line speed and how many sides need treating — tell us those and the target surface energy, and we will size the station and the generator.
