Blown Film Lines P Professional (air-cooled)
The modular system of the Blown Film Line P Professional allows the configuration of lines with up to 13 layers and the suitable screw diameters.
COLLIN
Pilot scale
COLLIN Pilot Line
Pre-production scale extrusion, film, stretching and winding — the bridge between lab and plant.
At a glance
Published figures
Pilot scaleBetween lab and production
MDOMachine-direction orientation
InlineModule line combinations
TurretAutomatic reel changeover
Overview
Pilot Line — what it covers
The Pilot Line sits between laboratory trials and full production. These are the machines used to prove a formulation or a film structure at a scale that genuinely predicts plant behaviour, without committing a production line to the experiment.
The range covers high-performance T series extruders, air- and water-cooled blown film lines, flat film lines with dies and feedblocks, MDO stretching, calendering lines, winders and turret winders — plus module lines that combine several processes inline.
The range
12 machine families in the Pilot Line

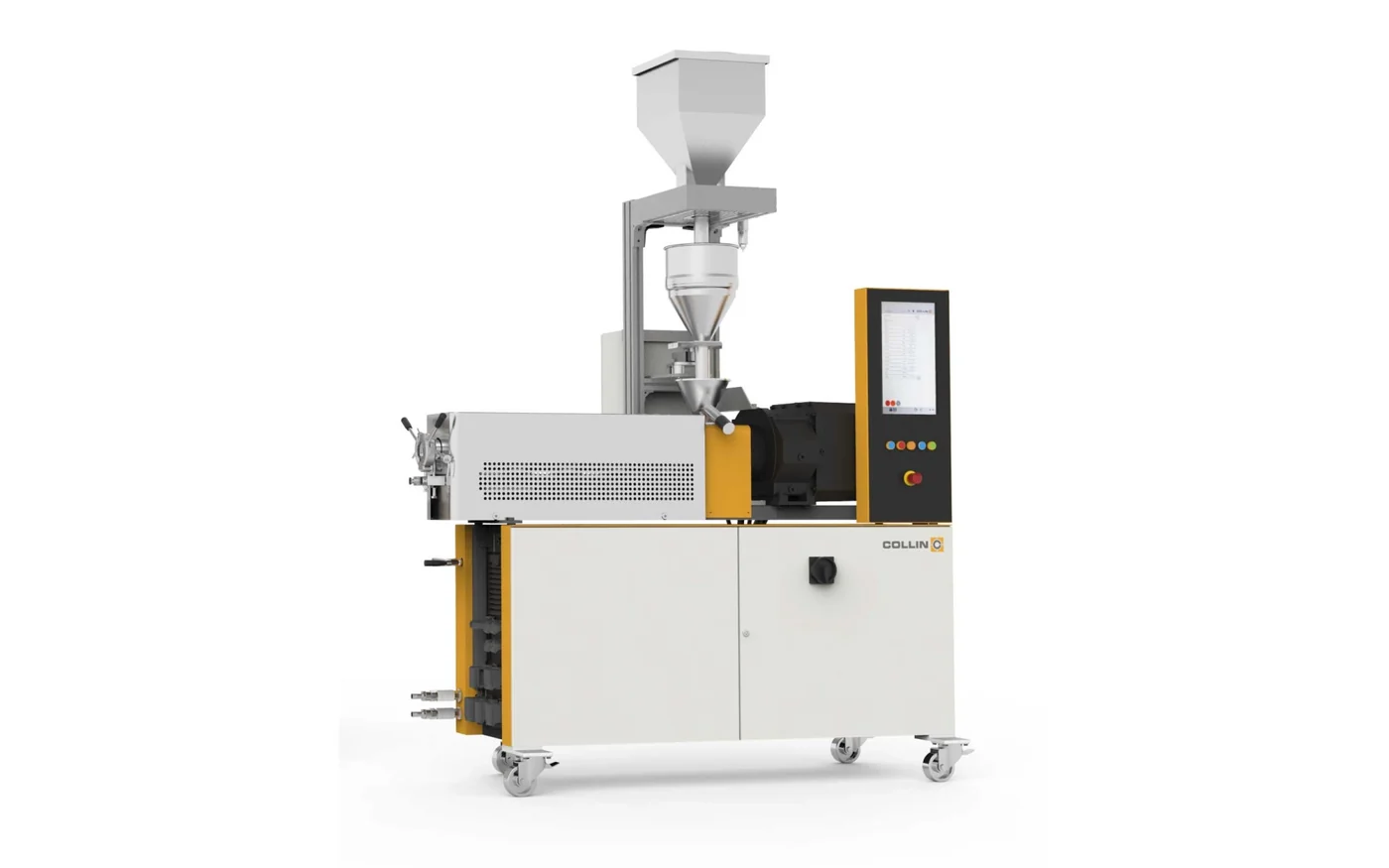

High-Performance Extruder T Torque
The Extruder T can be described as high-performance extruder or high-speed machine, because this series has all advantages of the Extruder P Professional and provides an…

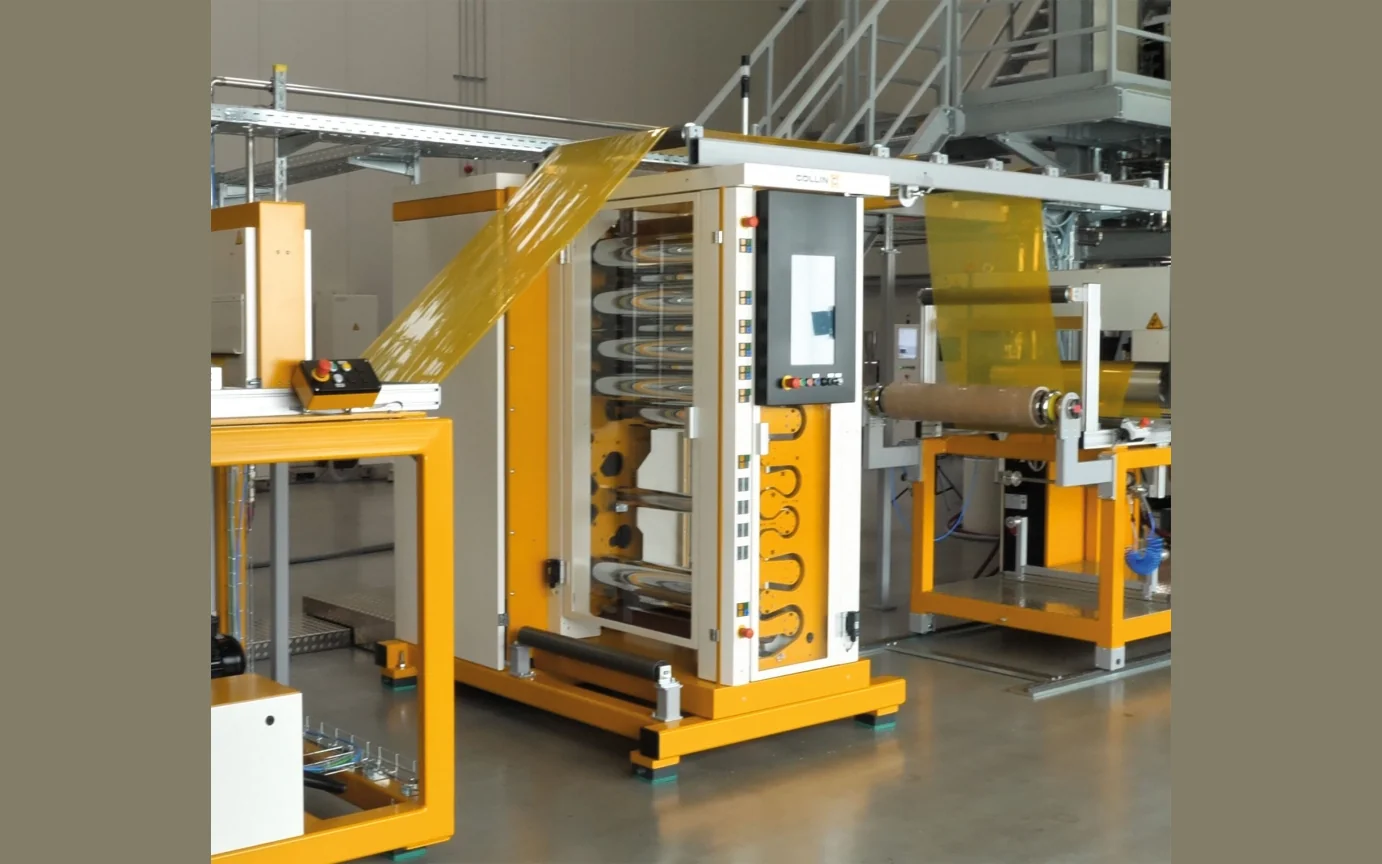

Stretching Lines MDO
The stretching of polymer films improves their characteristics in many ways.

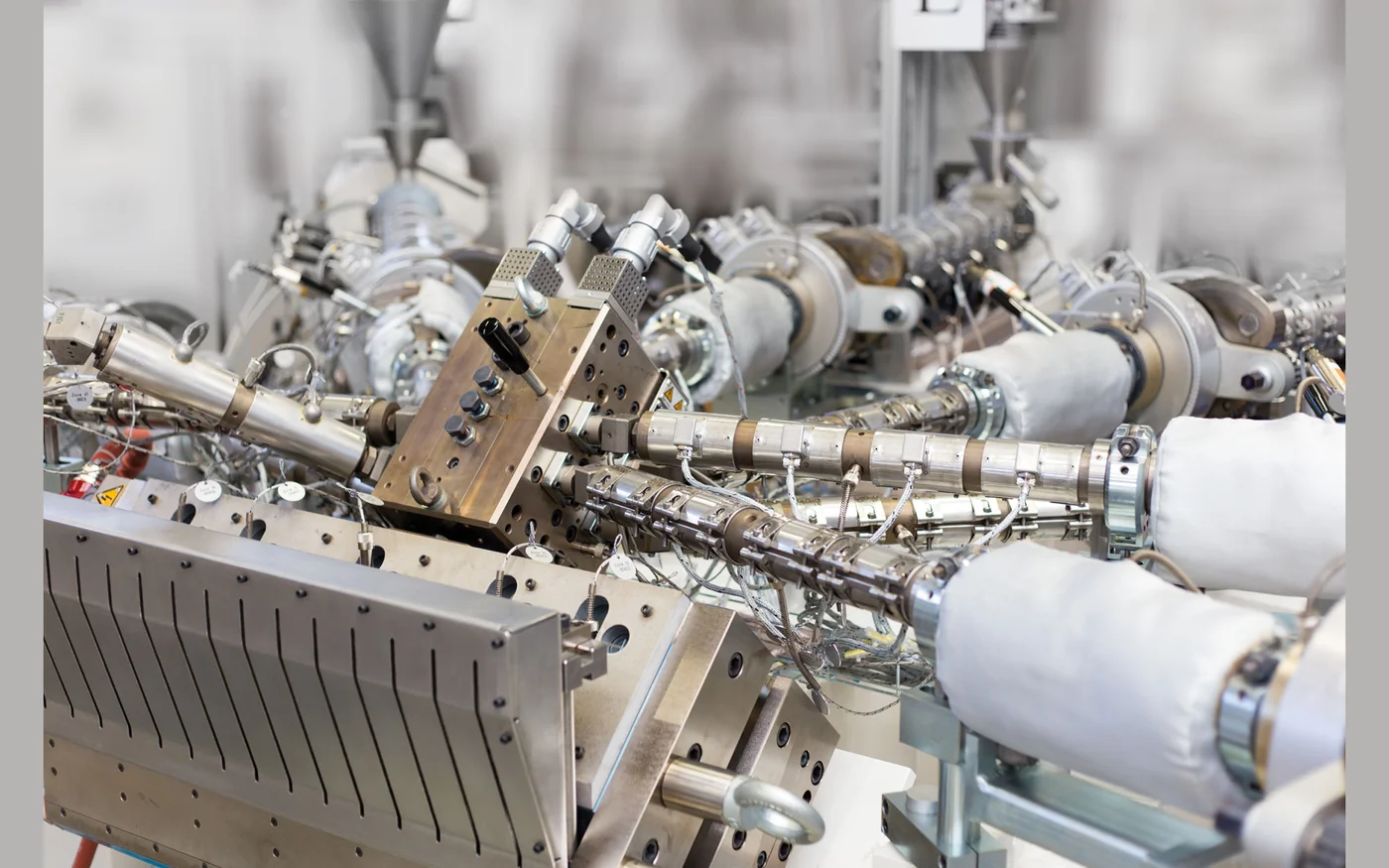

Flat Film Dies and Feedblock
Flat Film Dies BSD: manually adjustable gap via pressure screws, coat hanger distributor, prepared for co-extrusion.

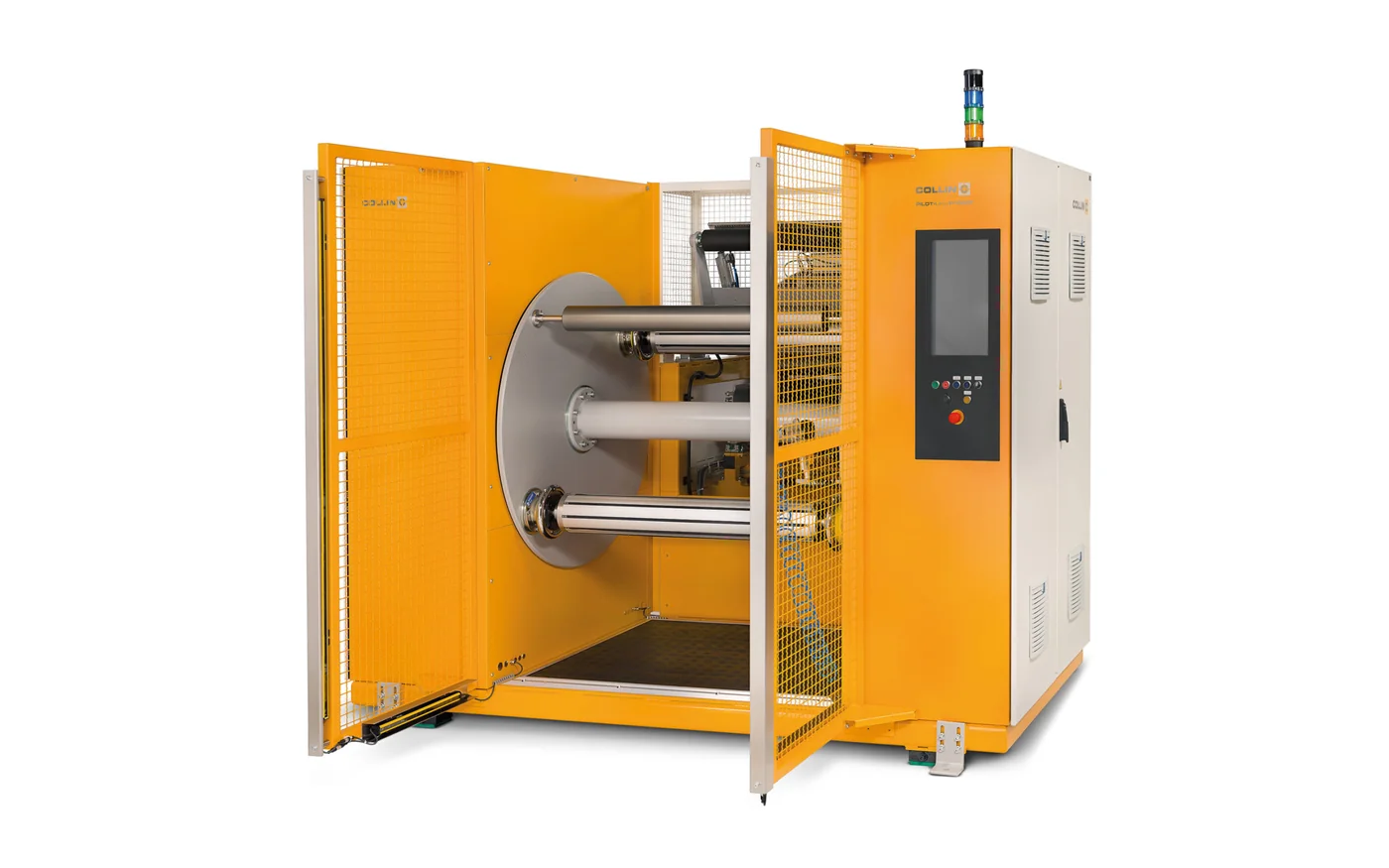

Turret Winder T
The innovative COLLIN turret winder convinces by the motor-driven lifting system of the bobbin, the modular design with positioning slide and cutting knife as well as by…

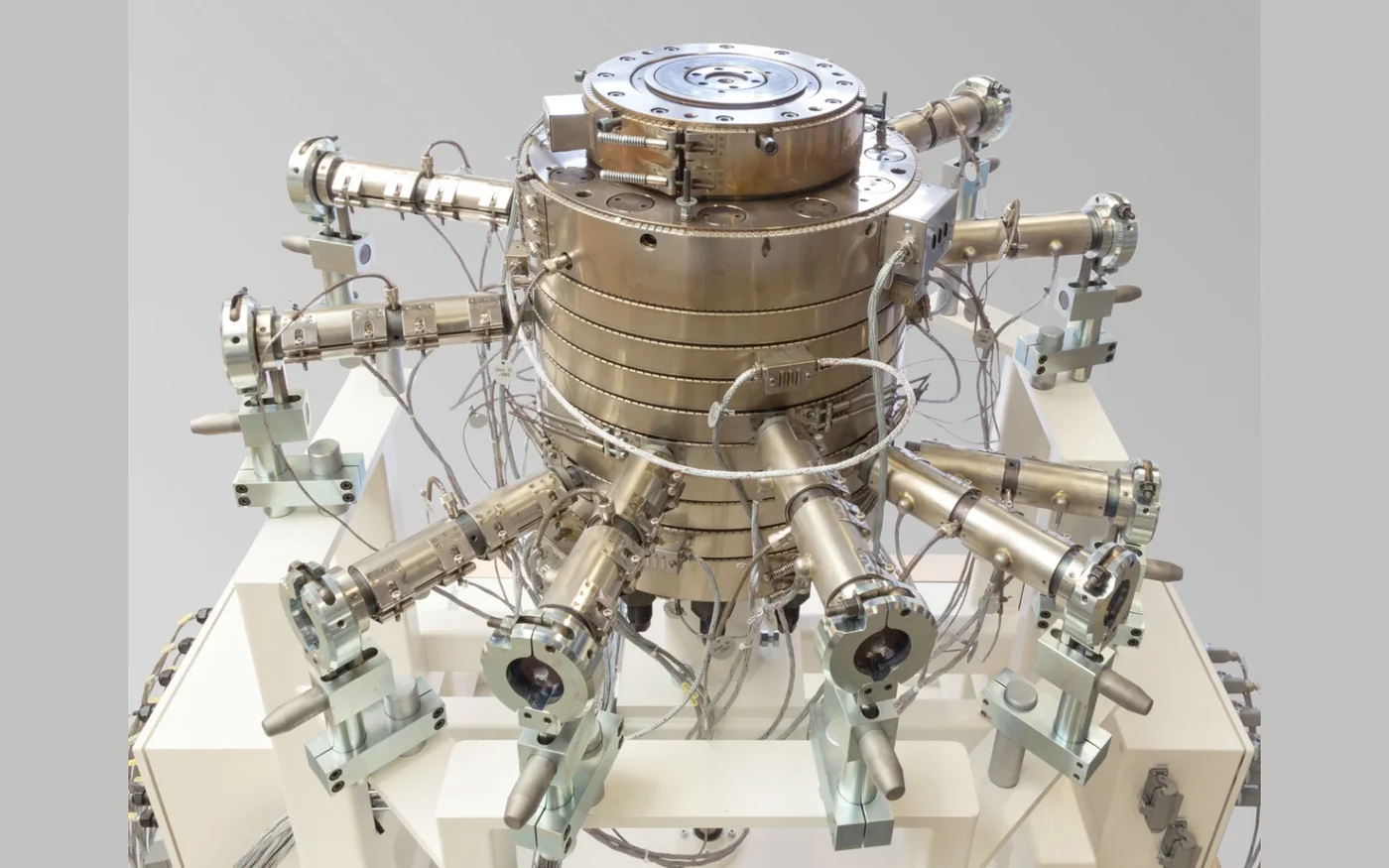

Blown Film Dies and Cooling Rings
Multi-layer dies for 2 up to 13 layers are suitable for different number of layers.

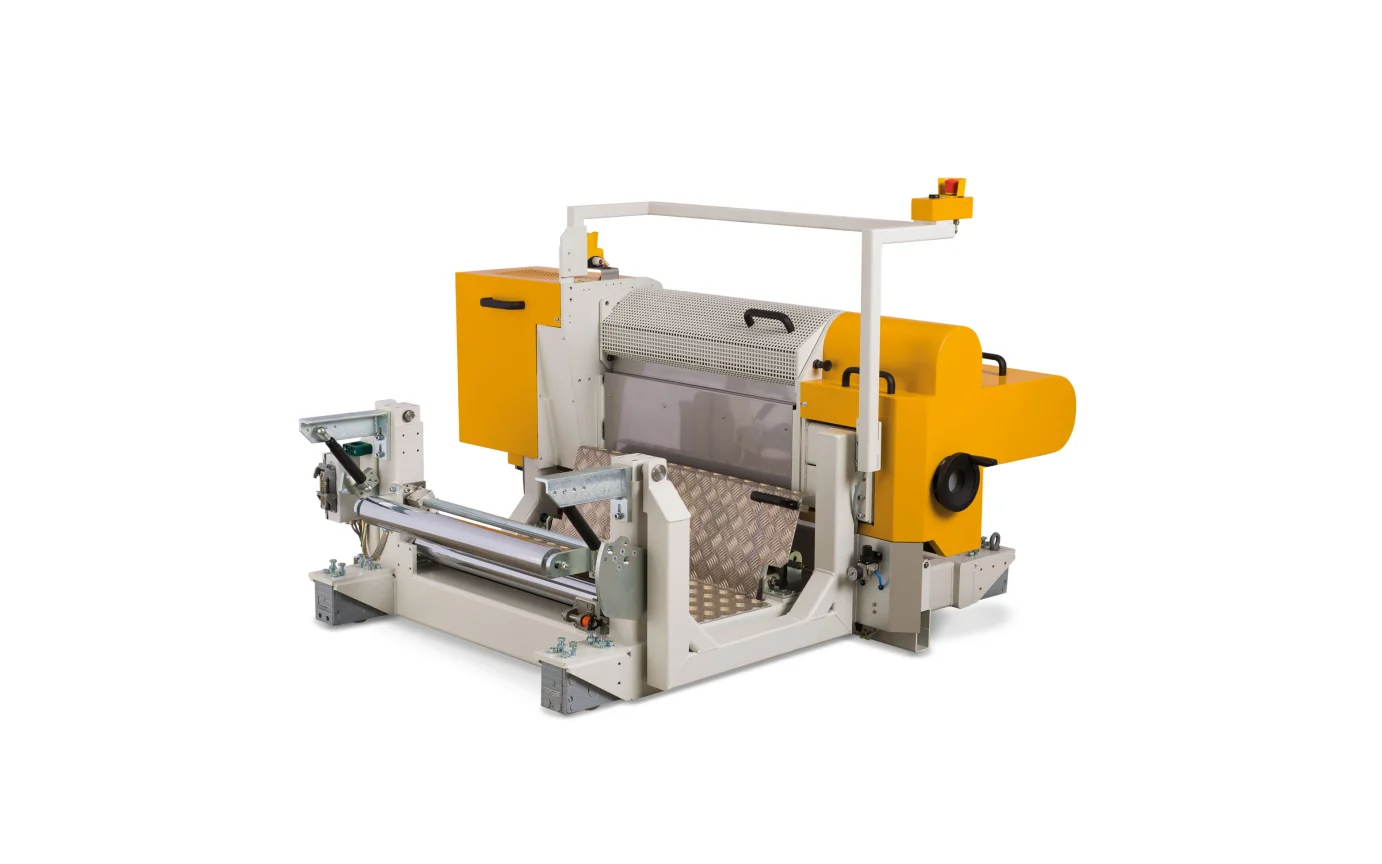

Pilot Line Flat Film Lines
Flat film lines with two rolls are mainly used for the production of films.

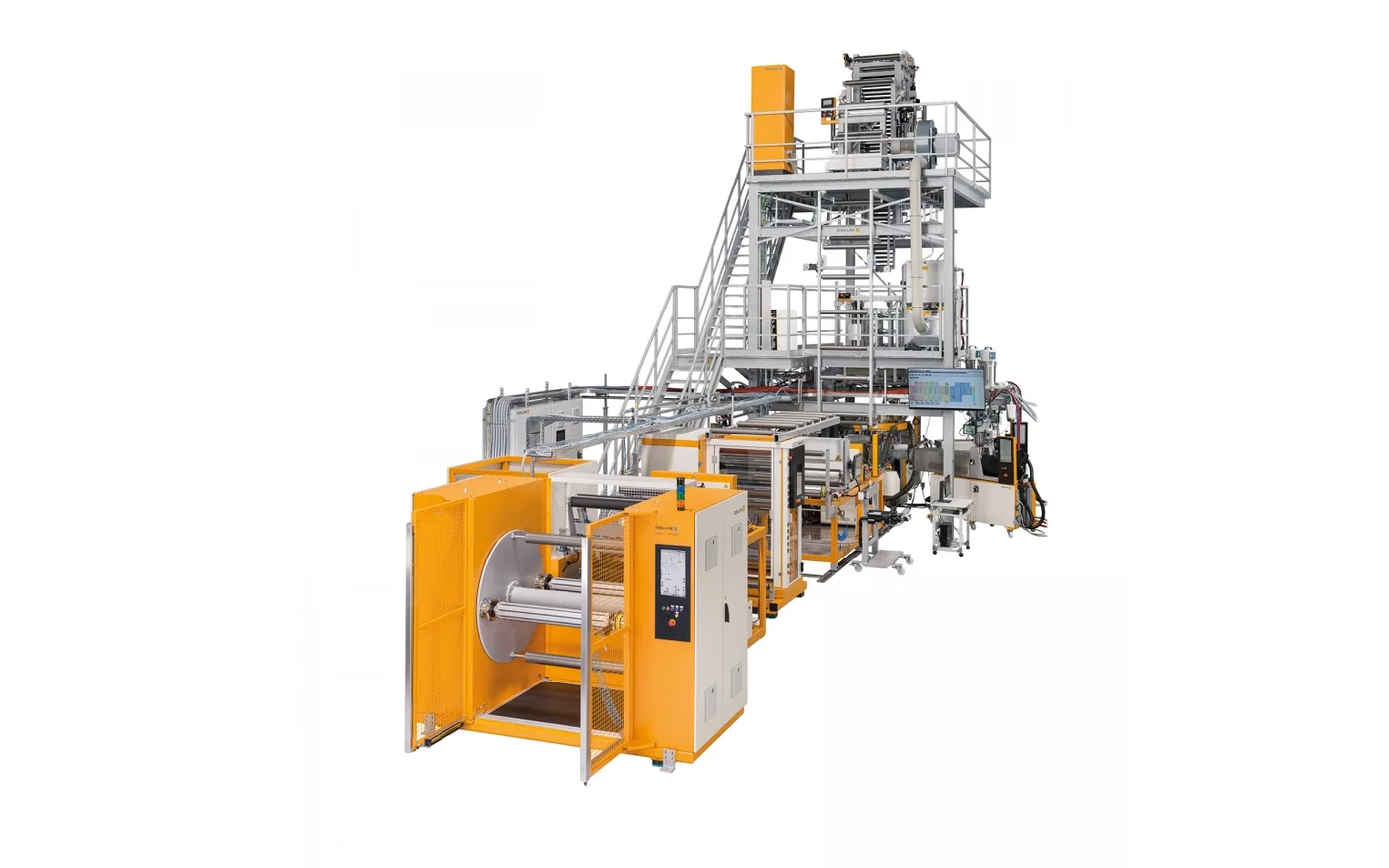

Module lines
Module lines are used in the packaging sector for the production of multi-polymer compounds, e. g. with carrier materials.

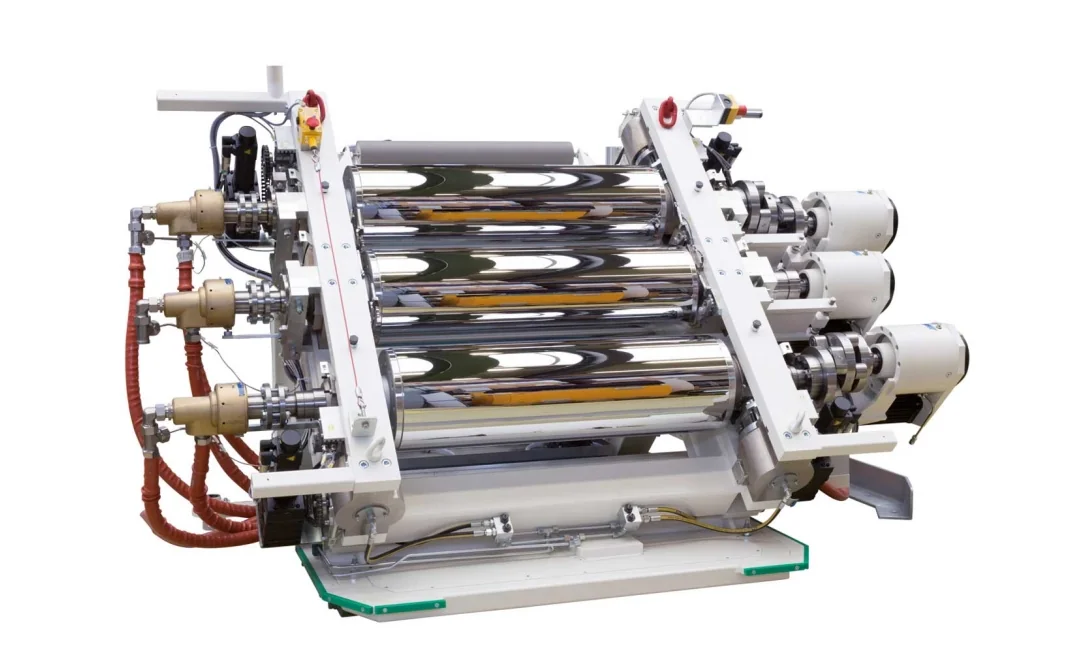

Pilot Line Calendering Lines
Calenders are used for the continuous production of semi-finished thermoplastic films or the continuous refining of different films and surfaces.

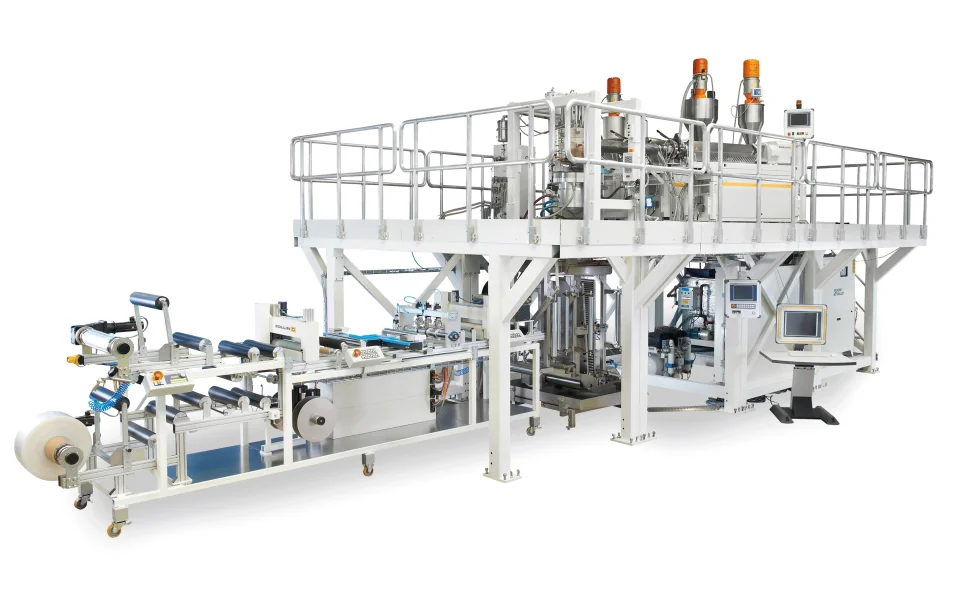

Blown Film Lines P (water-cooled)
These lines are designed for the production of films.

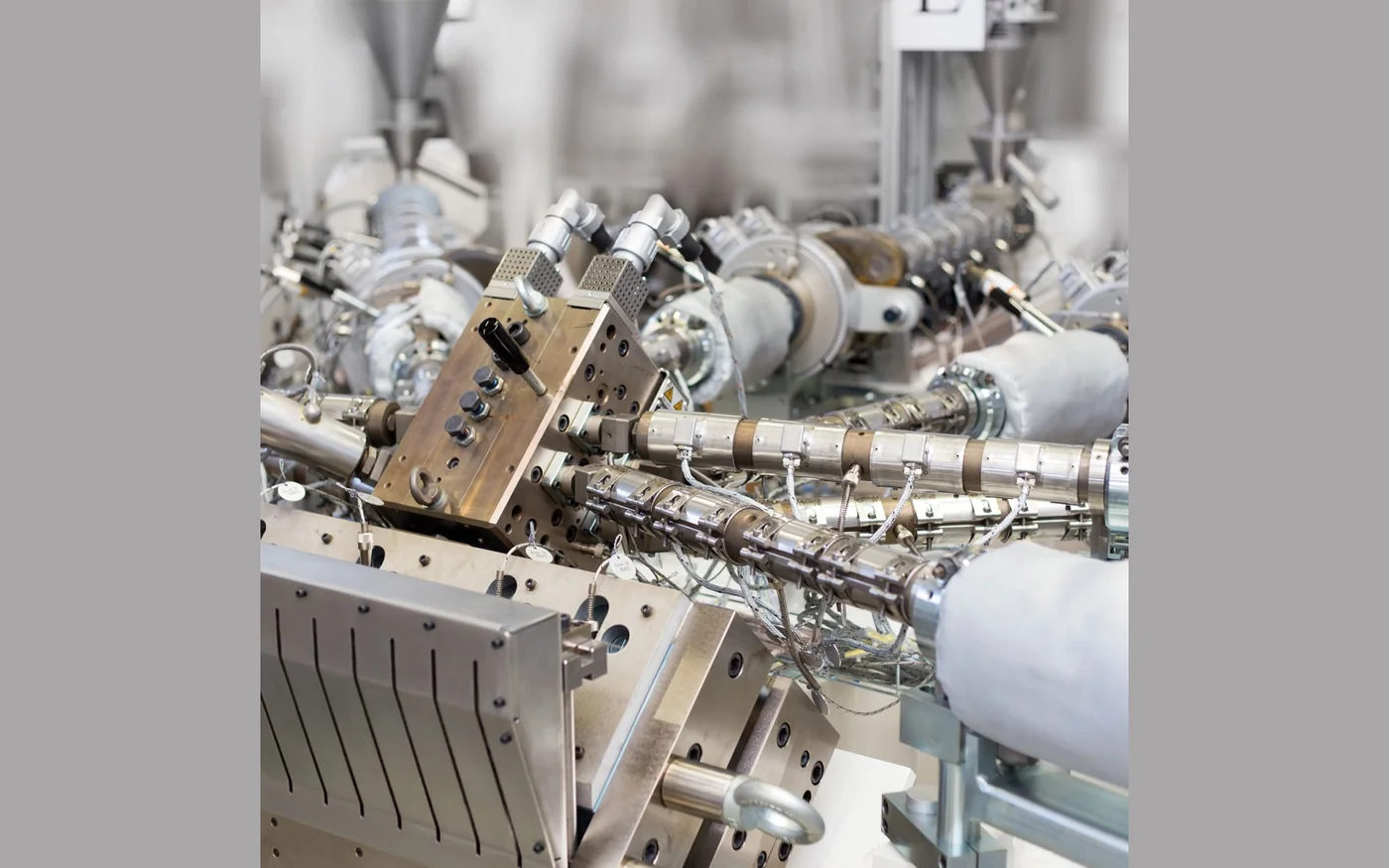

Feedblock Type 80
The flow-optimized feedblock is characterized by excellent layer thickness distribution.
Applications
Where the Pilot Line is used
Pre-production trials
Scale-up validation
Film structure development
Mono-material film
Extrusion coating
Customer demonstrations
K Group support
COLLIN in Pakistan — through K Group
K Group is the authorized agent for COLLIN Lab & Pilot Solutions in Pakistan. Tell us the material, the throughput and what you are trying to prove, and we will size the line and quote it — including downstream equipment, dies and the instrumentation to measure the result.
Line specification and sizing
Downstream equipment selection
Installation and commissioning
Operator training
Spare parts and service
More COLLIN machines
Related machines
COLLIN Lab Line
Laboratory extruders, compounders, film lines, calenders and presses for R&D.
COLLIN Medical Line
Mono and multi-lumen tube, film and compounding lines for medical plastics.
COLLIN Polytest Line
Rheometers, pressure filter tests and inline film inspection.
Complete the line
Works well with
- VAREX II (Windmöller & Hölscher) — Take a validated pilot structure to a production line.
- PrimeSlitter (Kampf) — Slit pilot reels for evaluation.
