Herbold
HGM
Low-speed shredding, insensitive to foreign bodies

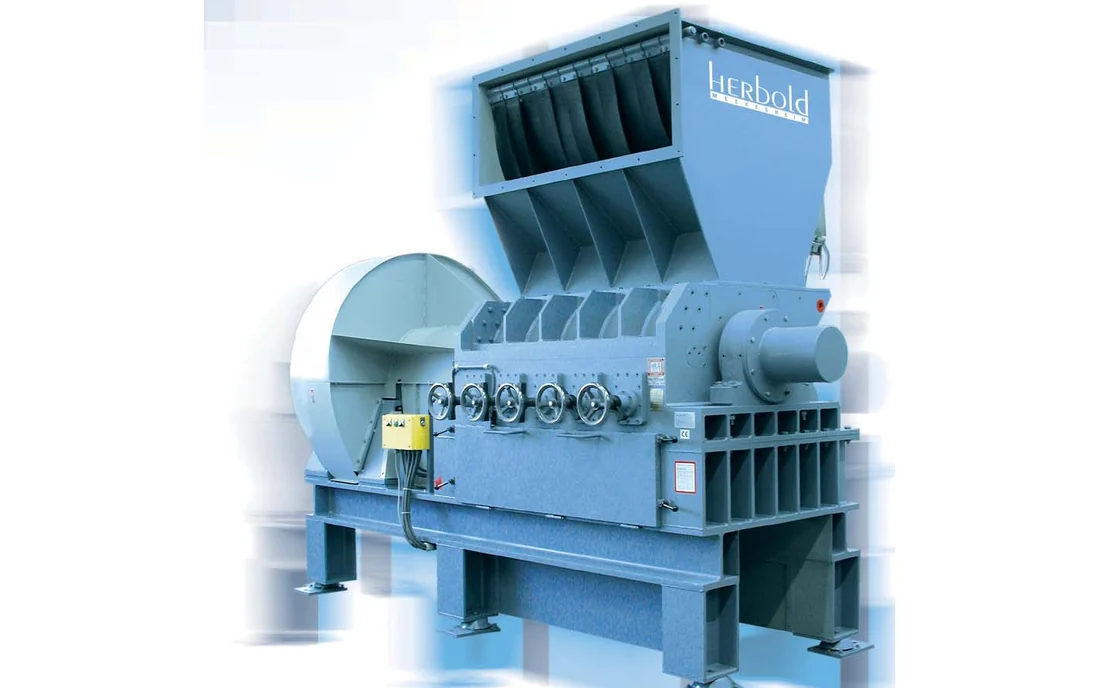

HGM — combined shredder-granulator
The HGM is a low-speed granulator that merges shredder and grinder in one machine — the right technology for shredding difficult recycling feed. Its blunt cut is relatively insensitive to foreign bodies, making it ideal for contaminated and metal-reinforced material.
Why the HGM
Foreign-body tolerant
An integrated shear-pin coupling protects the machine when tramp metal is encountered.
Low noise & dust
A massive full-steel rotor and V-belt drive keep shredding noise and dust generation to a minimum.
Long tool life
Improved knife durability and an economical knife configuration lower running costs.
Easy maintenance
A horizontally divided, armour-plated housing gives straightforward access to rotor and tools.
Specifications
| Model | HGM 60/100 | HGM 60/145 | HGM 80/160 | HGM 100/210 |
|---|---|---|---|---|
| Inlet opening (mm) | ca. 630 × 1050 | ca. 630 × 1420 | ca. 800 × 1600 | ca. 1000 × 2100 |
| Rotor form | V3 | V3 | V3 | V5 |
| Rotor knives (175 mm) | 18 | 24 | 27 | 50 |
| Stator knives (175 mm) | 6 × 2 | 8 × 2 | 9 × 2 | 12 × 3 |
| Speed (rpm) | 200 | 200 | 200 | 200 |
| Drive power (kW) | 75 | 90 | 132 (max. 200) | 200 (max. 315) |
| Number of screens | 2 | 2 | 2 | 2 |
| Weight | ca. 12.5 t | ca. 14 t | ca. 18.3 t | ca. 20.5 t |
| Dimensions A × B (mm) | 3010 × 1020 | 3410 × 1420 | 4100 × 1600 | 4600 × 2100 |
What it processes
Suitable materials
Applications
HGM in detail
Explore the range
EWS / DWS
Single- & Double-Shaft Shredders.
HGS
Guillotine Cutting Machine.
SML
Light-to-Medium Duty Granulator.
