Herbold
SMS
Robust construction for heavy-duty granulating

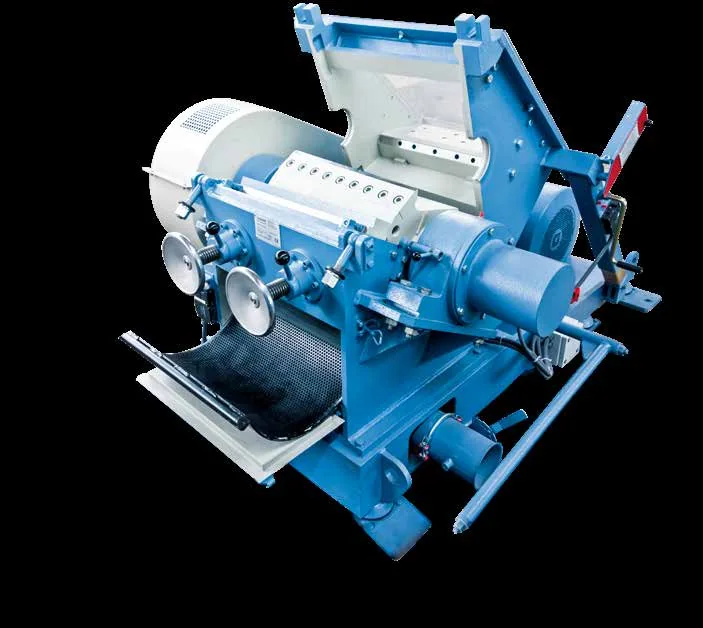

SMS — heavy-duty granulator
The SMS series is engineered for particularly demanding applications — the size reduction of heavy lumps, tough fibres and extremely thin films, or high-volume processing. It can run as a standard granulator or as a washing granulator that combines granulation with the addition of large quantities of water to clean contaminated plastics.
Why the SMS
Heavy-duty, wide range
Working widths from 600 to 2,000 mm and drives from 37 to 250 kW handle heavy lumps, tough fibres and high volumes.
Washing-granulator option
Combines granulation with large quantities of water to wash contaminated plastics in the same step.
Convertible design
Switches between processing hollow material and thick-walled panels to suit the feed.
Wear-protected build

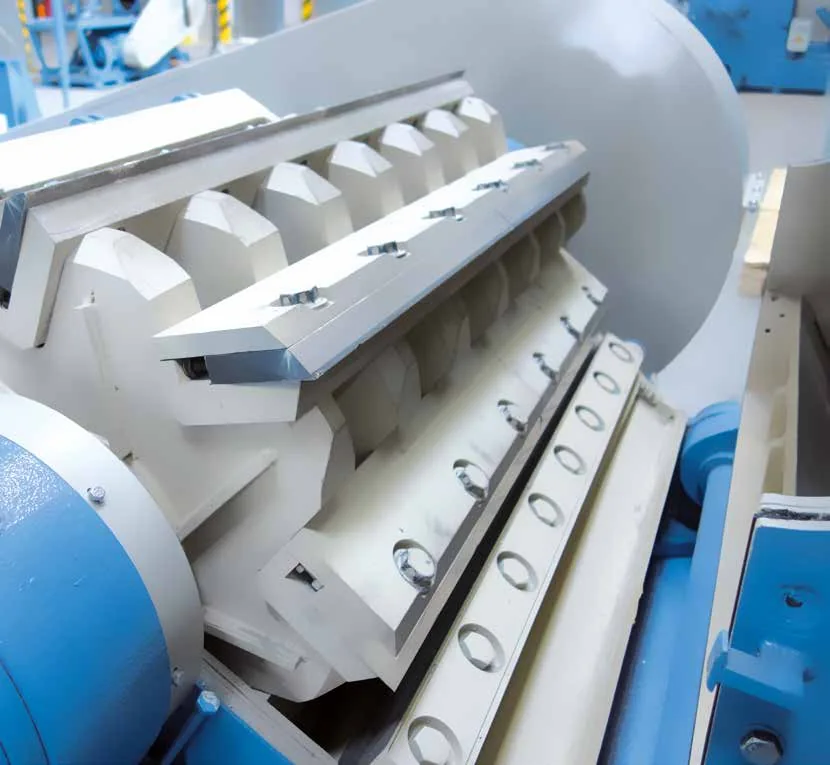

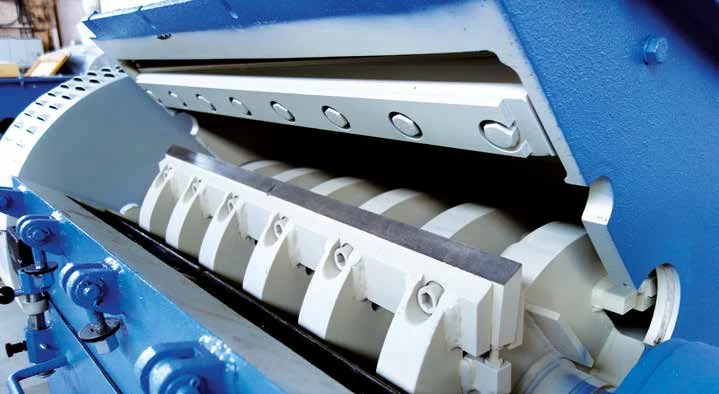

Optional steel plating with replaceable wear plates, stator-knife supports and rotor-knife support plates in wear-proof grades.
Specifications
| Rotor diameter | 450 – 800 mm |
|---|---|
| Working width | 600 – 2,000 mm |
| Motor power | 37 – 250 kW |
| Configuration | Standard or washing granulator |
What it processes
Suitable materials
Applications
SMS in detail
Explore the range
