GR Series
The scissor principle, built for in-line extraction
GR Series — granulators & cutters

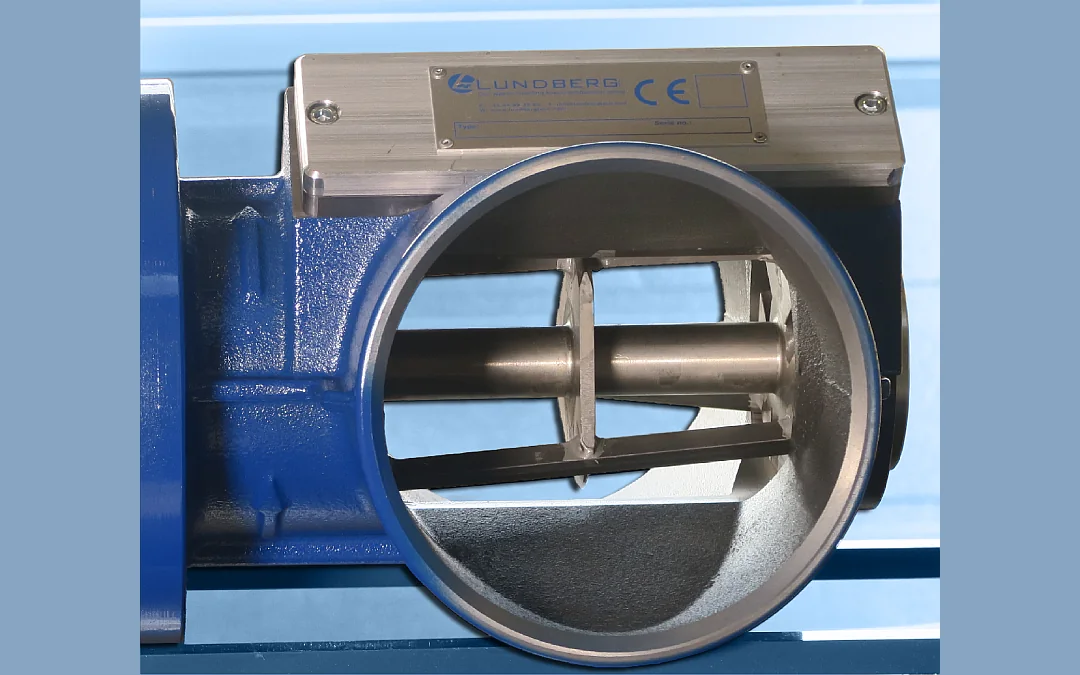

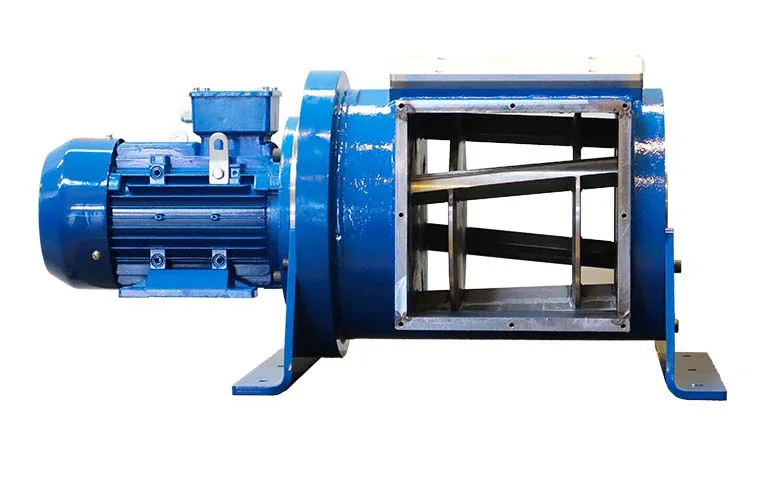

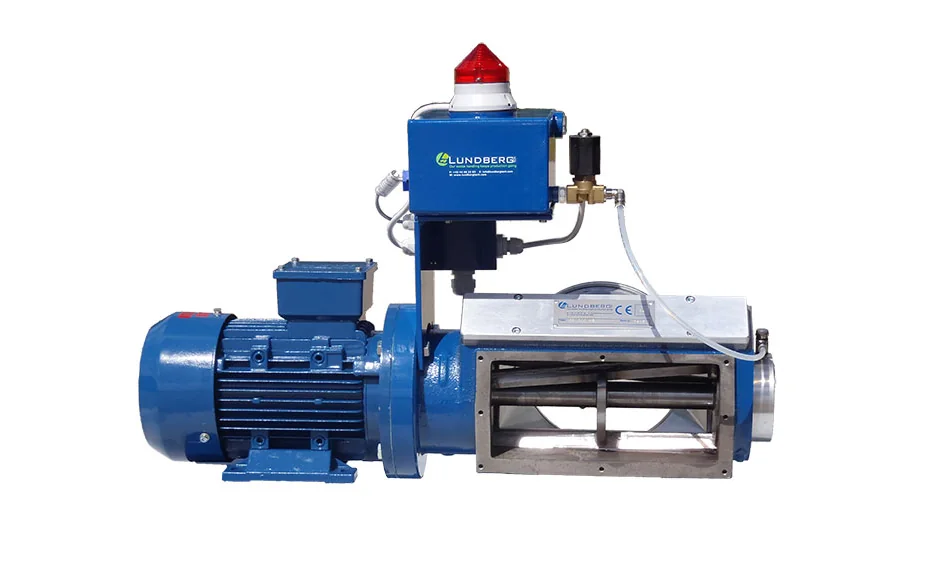

Lundberg Tech is probably the world's largest manufacturer of granulators and cutters built for integration into exhaust systems, producing over 1,000 units a year in Denmark. The Lundberg Tech scissor principle — a cutting action that mimics scissors — is built on cast-iron housings and single-piece rotors for stability.
Why the GR Series
The scissor principle

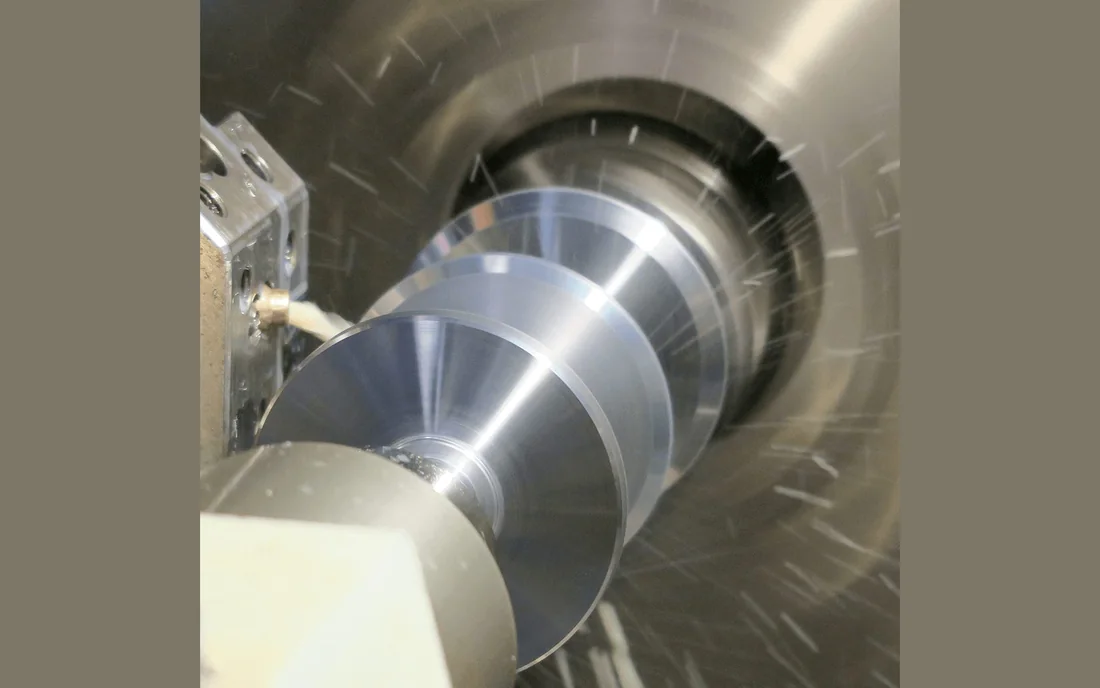

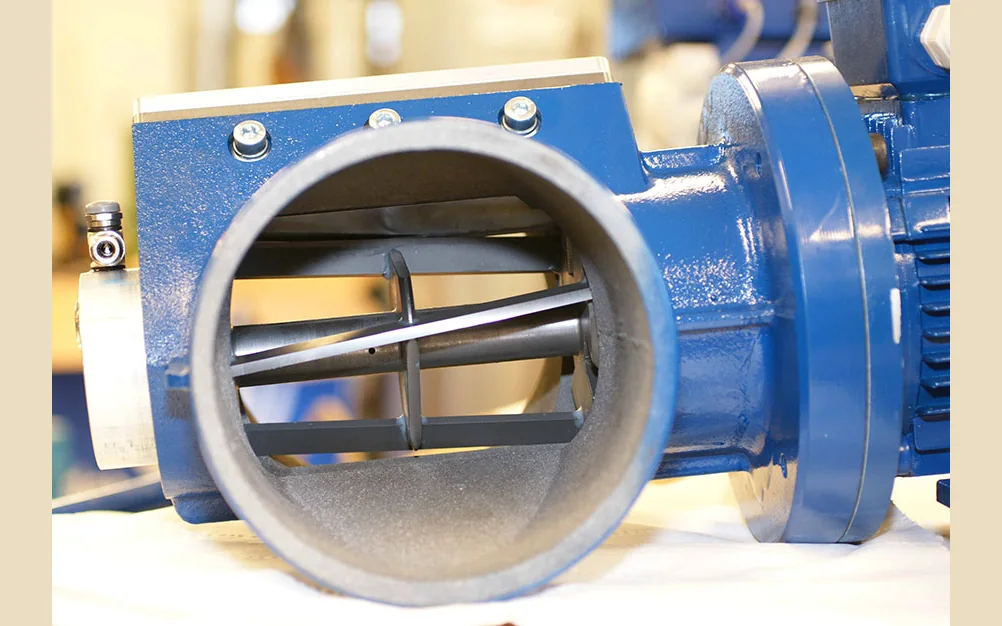

A scissor-like cutting action on cast-iron housings with single-piece rotors gives high stability and a clean cut.
Wolfram carbide knives
Hard-metal cutting knives with wolfram carbide for long life, plus high-quality bearing systems.
Self-cleaning
The design prevents waste accumulating inside the granulator, with silicon oil injection available for adhesive materials.
Built for in-line extraction
Designed to sit inside the exhaust system, handling air speeds up to 80 m/s and machine speeds to 2,500 m/min.
Heavily customisable
2–12 rotor knives, ultra-thin material grinding, extra wear resistance, non-stick coatings, lubrication, frequency converters, gear motors, hole shields and stainless steel parts.
Specifications
| Pipe sizes | Ø80 mm – Ø400 mm |
|---|---|
| Air capacity | up to 10,000 m³/h |
| Air speed | up to 80 m/s |
| Process machine speed | up to 2,500 m/min |
| Entrance width | up to 660 mm |
| Material thickness | down to 5 microns |
| Rotor knives | 3 standard (2–12 available) |
| Motor speed | 1,400 or 2,800 rpm |
| Production | 1,000+ units per year, Denmark |
What it processes
Solvents & materials
Applications
GR Series in detail
