Compact, automated, highly efficient — slitting films, refined papers and laminates.

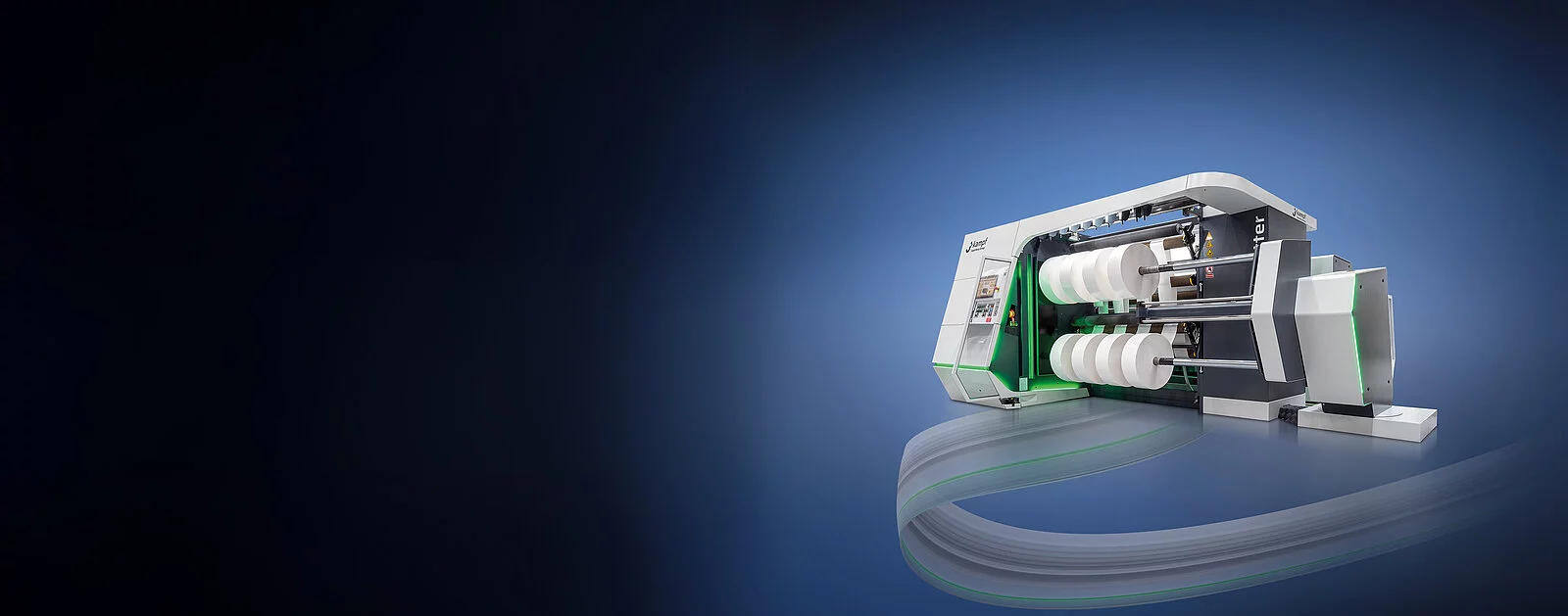

The Kampf ConSlitter is a compact slitter rewinder series built for converters running many short-run orders that demand fast changeovers and flexible automation. Available in three lines — SilverLine, BlueLine and BlackLine — and in duplex and dual-turret formats, it spans working widths from 1,050 mm to 2,250 mm at speeds up to 1,000 m/min. A comprehensive modular system, KAMPF 2-touch operation, Siemens controls and an intelligent safety-lighting concept let you configure anything from a manually adjustable machine to a near-fully-automated line with integrated finished-roll logistics.
Many orders, short running times, tight changeover windows — the ConSlitter is built for exactly this. It processes films, refined papers and laminates from 10 to 500 µm on a compact footprint, and gives you complete freedom in system configuration: from manually adjustable slitting systems to almost fully automated machines with integrated finished-roll logistics.
Behind a completely new shape and colour concept sits the latest Siemens control system, precise drive and control technology and proven KAMPF mechanical engineering. Intuitive KAMPF 2-touch operation, newly designed workplaces and an intelligent lighting concept that signals machine status by colour make everyday operation simpler, faster and safer.

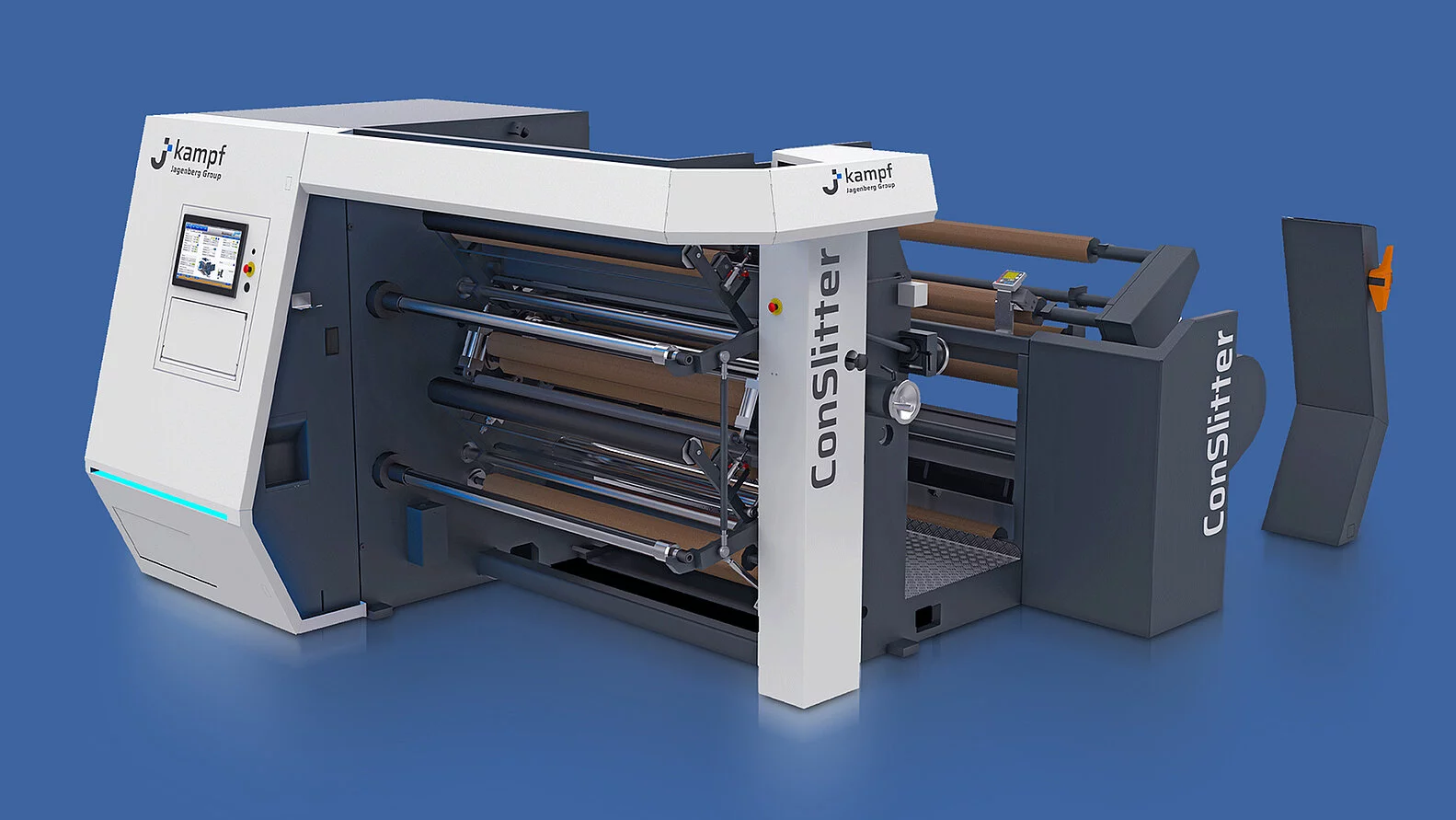

Compact but comprehensive. The reliable, economic duplex slitter for varied materials that isn't complex to operate — two working widths (1,450 / 1,750 mm) at up to 600 m/min, with a flexible modular build.
Enquire about this version

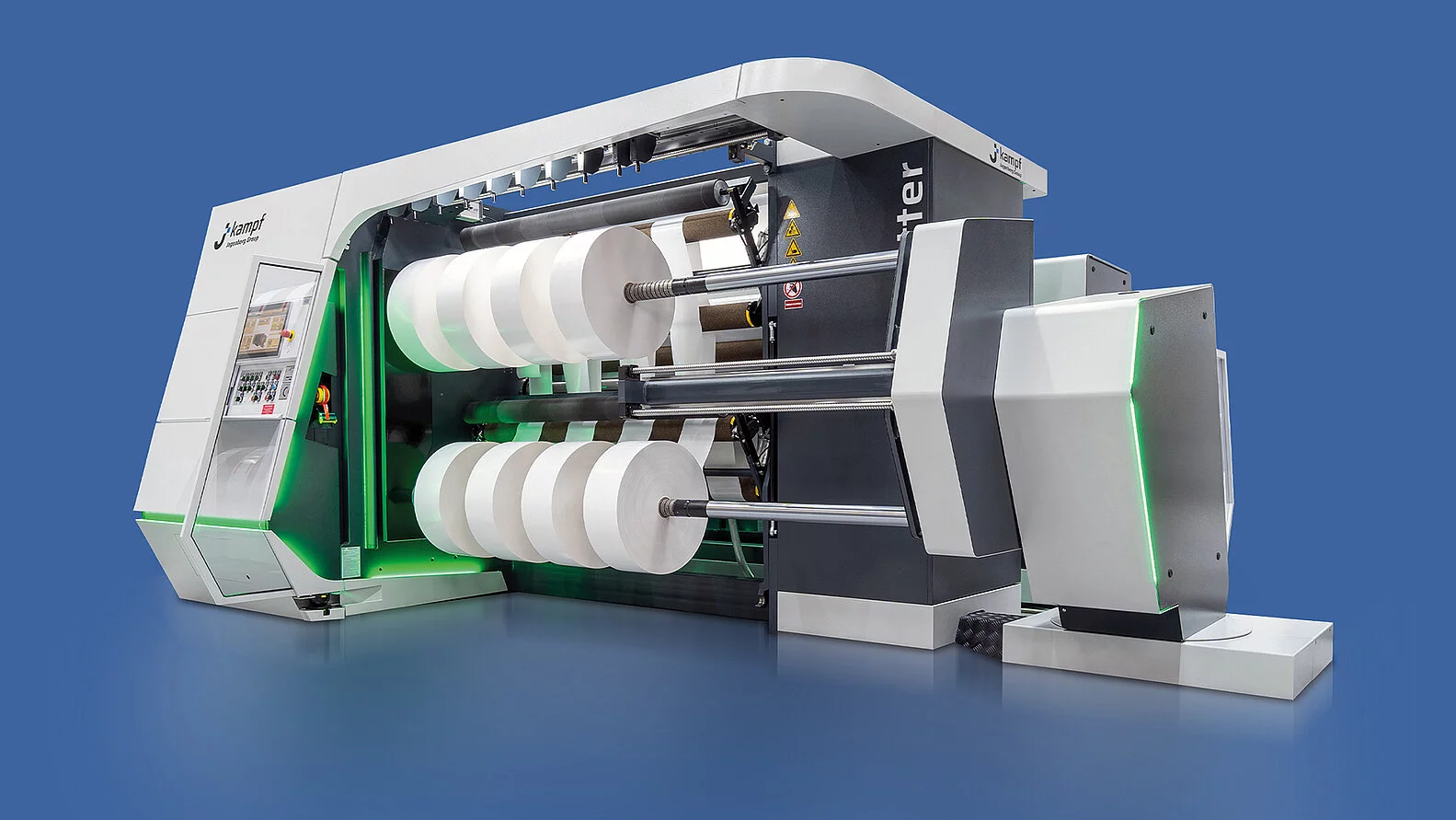

Flexibility and stability. The highest degree of flexibility — five working widths (1,050–2,250 mm) up to 800 m/min, in duplex (CFRU/CFRO) or dual-turret (CTRU) formats, with overhead or underfloor web paths.
Enquire about this version

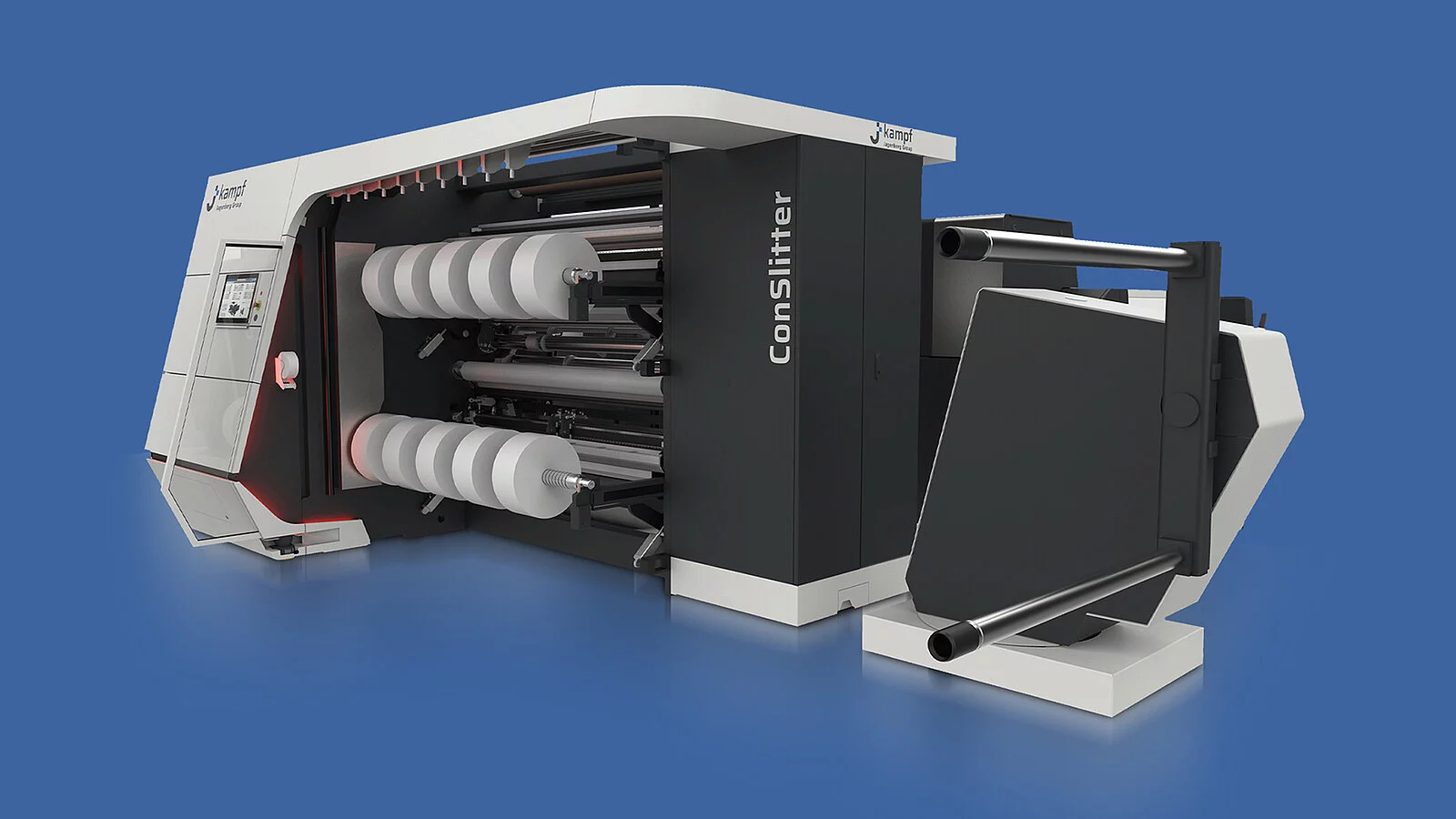

Automated, productive, highly efficient. Top of the class for equipment options and automation — working widths to 2,250 mm at up to 1,000 m/min, in dual-turret (CTHO) or duplex (CHRO) formats with integrated roll logistics.
Enquire about this version
Dual-turret technology and automation cut downtime on smaller batches — laser core positioning, automatic cross-cutting and lay-on, cross splicing, finished-roll push-off and removal stands hand your rolls off to further handling while the machine is already producing again.
Choose scissor shear cut or razor blade cut — manual or automatic — with optional single knife holders and automatic knife positioning for repeatable, exact slit positions. Friction-differential or torque rewind shafts, single contact-roll systems and antistatic equipment cover plain, sensitive and demanding materials alike.
A completely new shape and colour concept with intuitive KAMPF 2-touch operation, optimum accessibility and integrated safety. An intelligent lighting concept signals machine status by colour — visible up close and from a distance — while future-oriented handling and digitization solutions enable data transfer into your operation.
A versatile converting slitter for films, refined papers and laminates from 10 to 500 µm — from simple, economic runs to sensitive, demanding materials.
| Spec | SilverLine | BlueLine | BlackLine |
|---|---|---|---|
| Format | Duplex (CFRU) | Duplex (CFRU / CFRO) & dual turret (CTRU) | Dual turret (CTHO) & duplex (CHRO) |
| Materials | Films, refined papers, laminates | Films, refined papers, laminates | Films, refined papers, laminates |
| Material thickness | 10–500 µm | 10–500 µm | 10–500 µm |
| Material widths | 1,450 · 1,750 mm | 1,050 · 1,450 · 1,750 · 2,050 · 2,250 mm | 1,450 · 1,750 · 2,050 · 2,250 mm |
| Parent roll diameter | 1,000 mm | 1,000 · 1,300 mm | 1,300 mm |
| Finished roll diameter | max 610 mm | max 850 mm (1,000 mm) | max 630 mm (CTHO) / 850 mm (CHRO) |
| Finished roll weight | As required | max 600 kg | max 600 kg |
| Slitting systems | Razor blade / shear cut | Blade / scissor cut | Blade / scissor cut |
| Slitting width | ≥ 25 mm | ≥ 25 mm (≥ 50 mm turret) | ≥ 25 mm |
| Winding cores | All common types | 70 mm · 3″ · 6″ | 70 mm · 3″ · 6″ |
| Machine speed | max 600 m/min | max 800 m/min | max 1,000 m/min |
Dual-turret and automation options slash changeover and rewind cycle times on many-order, small-batch production.
A modular system from manual to near-full automation — three lines, duplex or turret, overhead or underfloor.
One compact platform for 10–500 µm materials, with Siemens controls, 2-touch HMI and smart safety lighting.
